RVP Check Valve

Check valve type RVP…L2X Check valve type RVP is used to allow fluid flowing in one direction and leakage-free closure in opposite direction. When fluid flows via port P1, fluid push poppet...
Quantity:

This is the description of Hydraulic Check Valve

With advanced equipment and qualified workers, Hislohydraulic.com is well-known as one of the professional China one wire braid hose manufacturers. We have professional staff specialized in manufacturing high quality hydraulics in our factory. Welcome to wholesale high precision one wire braid hose at cheap price with us.

Products Specifications:

Check valve type RVP…L2X

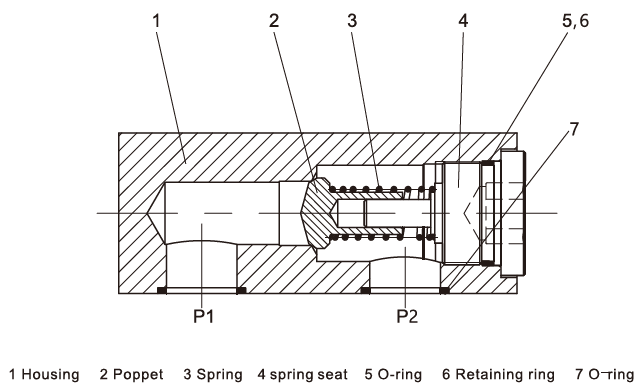

Check valve type RVP is used to allow fluid flowing in one direction and leakage-free closure in opposite direction. When fluid flows via port P1, fluid push poppet (2) to move right way overcoming the spring (3), then connects the chamber P1 and P2. When fluid flows P2 to P1, poppet (2) moves left way and then the check valve closes.

4

We are excellent Chinese manufacturers. Our products, such as One Wire Braid Hose,hydraulic control valves suppliers,Shunt manufacturer,hydraulic valve suppliers,hydraulic valve for sale, are of excellent quality and affordable. Looking forward to your inquiry.
