This is the description of Hydraulic Pressure Control Valve
With advanced equipment and qualified workers, Hislohydraulic.com is well-known as one of the professional China one wire braid hose manufacturers. We have professional staff specialized in manufacturing high quality hydraulics in our factory. Welcome to wholesale high precision one wire braid hose at cheap price with us.

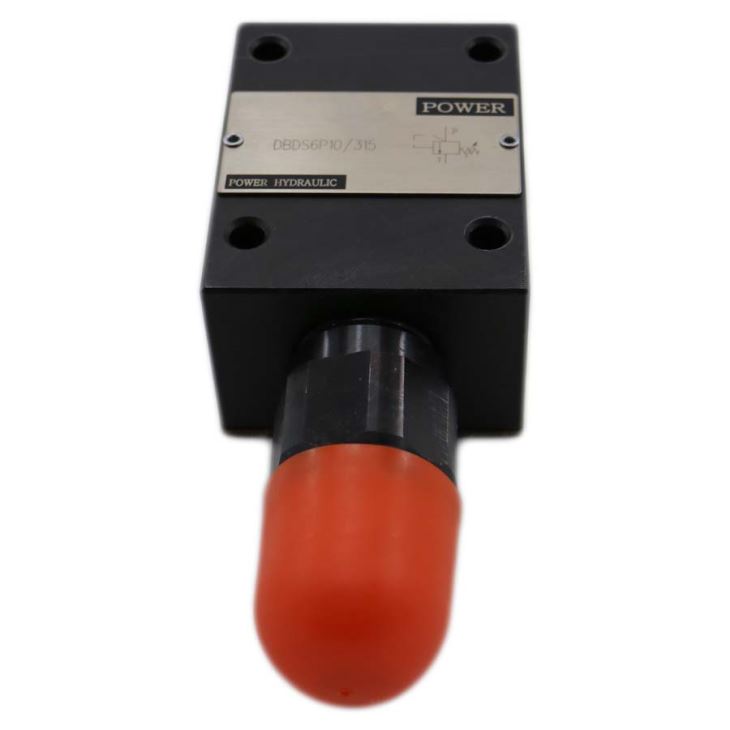

Pressure relief valve, direct operated, type DBD ... 10
The DBD pressure relief valves are direct operated, used to limit the pressure of hydraulic system. It comprises the sleeve (1), spring (2), poppet spool with damping (3) (pressure stages 2.5 to 40MPa) or ball spool (4) (pressure stage63 MPa) and pressure adjustment element (5). The system pressure may be set infinitely by the adjustment element. The spring (2) presses poppet spool (3) onto the valve seat. The channel P is connected to the system and the system pressure affect on the area of poppet (or ball) spool.
If the pressure in channel P rises excess the value set at the spring (2), the poppet spool (3) or ball spool (4) opens against the spring (2). Then the pressure oil flows from channel P to channel T. And the stroke of the spool is limited by spin shaft (6).
To gain accurate setting value within the whole pressure range, the pressure scope is divided into 7 pressure ratings, and every rating has a corresponding spring which may be set maximum pressure.
We are excellent Chinese manufacturers. Our products, such as One Wire Braid Hose,hydraulic control valves suppliers,Shunt manufacturer,hydraulic valve suppliers,hydraulic valve for sale, are of excellent quality and affordable. Looking forward to your inquiry.
