This is the description of Hydraulic Flow Control Valve
With advanced equipment and qualified workers, Hislohydraulic.com is well-known as one of the professional China one wire braid hose manufacturers. We have professional staff specialized in manufacturing high quality hydraulics in our factory. Welcome to wholesale high precision one wire braid hose at cheap price with us.
Products Specifications:
Throttle and throttle check valve types MG/MK
Valve types MG and Mk are throttle and throttle check valves in relation to fluid pressure and viscosity.

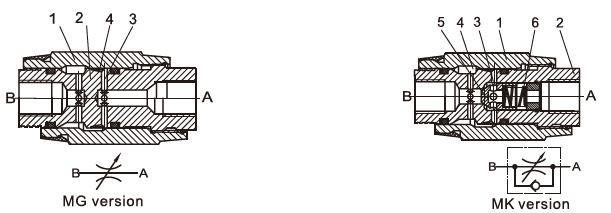

Type MG (throttle valve)
This valve throttles in bi-directions. Fluid flows through side hole (3) to the throttling orifice (4) formed between the valve body (2) and the adjustable sleeve (1). The cross-section of throttling orifice (4) may be steplessly varied by rotating the sleeve (1).
Type MK (throttle check valve)
In throttling direction, the spring (6) and the fluid presses the poppet (5) onto its seat, check valve is blocked. Fluid flows via the side hole (3) to the throttling orifice (4), formed between the valve body (2) and the adjustable sleeve (1).
In the opposite direction, fluid pressure acts on the face of the poppet (5), check valve is opened and fluid flows freely. At the same time, part of the fluid flowing through the annular groove gets self-clearance as the desired effect.
We are excellent Chinese manufacturers. Our products, such as One Wire Braid Hose,hydraulic control valves suppliers,Shunt manufacturer,hydraulic valve suppliers,hydraulic valve for sale, are of excellent quality and affordable. Looking forward to your inquiry.
